CTR-SDK[edit]

Descriptions Derived from SDK 2.3.4 except where notified otherwise.

Dev Menu[edit]

Dev Menu Screenshots
Old Dev Menu Screenshot

This application on the top screen displays the firmware and revision of the Dev Menu, the free space available on the TWL(DSi) NAND partition and SD card if present. It also provides information on the current file or device selected, as well as navigation instructions for the bottom screen.The bottom screen has three different windows, which are:

  • Program - From this tab, applications can be loaded from the NAND, the SD card and the slot 1 card (only a select scope of applications, see below for Dev Menu revisions and their corresponding scope of applications). Installed software can be uninstalled by pressing X on it.
  • Import - From this tab, the SD card can be browsed to select and install a .CIA file. In later revisions this was renamed to SDMC. Pressing X+A on a CIA will delete it after a successful installation.
  • HIO - "Host IO" A tab available in later revisions of the Dev Menu. Used for installing CIAs stored on the host PC, this is supported by hio services, and hio daemon on the host PC.
  • ExtData - From this tab, the 3DS's ExtData(except NAND shared extdata) can be deleted.
  • SExtData - "Shared Extdata", this feature was removed early on in the history of this app.

Titles are shown in the Program tab by "Unique Id", a substring (2nd-6th character) of the lower order byte of the Title ID, and by their Product Code (CTR)/name in header (TWL); some other non-executable special titles (applets or CFAs), explicitly programmed in the specific version of DevMenu, are displayed in red.

DevMenu is not capable of bridging the differences between retail and developer-signed software, i.e. it cannot be used to launch retail cards on Panda systems.

(Also note that if a 3ds executable cannot be launched from the Dev Menu due to restrictive flags in the executable, such as restrictive memory, the product ID will be coloured red as opposed to black)

To perform a manual update with CIAs on a dev unit, pressing Start + Y while highlighting the NATIVE_FIRM CIA will trigger an option to update firmware, thus allowing a downgrade.

Pressing L + R + Left + B + Start will, after confirmation, bulk uninstall all SDK tools. DevMenu itself will crash a few seconds later.

SDK Version Titles Accessible
0.9.2 - 0.13.2 Applications(NAND), System Applications , TWL Titles
0.14.0 - 1.1.0 Dev NAND Applications, System Applications , TWL Titles
1.2.0 - 2.0.0 Dev NAND Applications, DSiWare
2.1.0 - 2.4.0 Applications(SD), Dev NAND Applications, DSiWare
3.0.0 - 3.1.0 Applications(SD), Dev NAND Applications, Demos, DSiWare
3.2.0 Applications(SD), Dev NAND Applications, Demos, DSiWare, WebBrowser
3.3.0 - ? Applications(SD), Dev NAND Applications, Demos, DSiWare, WebBrowser, TwlNandFiler
0.24.67 Applications(SD), Dev NAND Applications, Demos, DSiWare, WebBrowser, eShop, Miiverse, TwlNandFiler(?), dummy CFA

Config[edit]

Config Menu Screenshot
Newer Config Menu Screenshot

This application is a text-mode advanced configuration menu for the 3DS.

When open, similiarly to the regular System Settings, the Home menu is not accessible, and the console is forced to be rebooted on exit (accomplished by pressing the Power button).

The functionality and menu layout of this app has changed a lot over its continuous development; some features include:

  • Menu - (Home Menu/Test Menu) This function edits the configuration field containing the menu TID for dev units, allowing the user to choose between the Home Menu or the Test Menu, as the menu loaded by the NS module.
  • Language - same options found in the Language section of System Settings but also has an "invalid" option
  • System Mode - Changes memory allowance for applications.
  • Prod - 64MB Memory mode (Home Menu can usually only run in this mode and most retail-looking units cannot switch out of this mode)
  • Dev1 - 96MB Memory mode
  • Dev2 - 80MB Memory mode
  • Dev3 - 72MB Memory mode
  • Dev4 - 32MB Memory mode
  • snake Prod - 64MB (?) for New-3DS
  • snake dev1 - 124MB (?) for New-3DS
  • snake dev2 - 178MB (?) for New-3DS
All CTR Debuggers/Prototype units can change memory allowance. For Developer Test Units, the ability to change Memory Allowance, appears to be dependent on an option when buying the Test Unit (similar to having a choice to purchase IS-Nitro's Wireless/USG options when buying an IS-Nitro from Nintendo). If anything other than prod or dev2 is selected, menu settings are automatically changed to test menu.
On some Test Units, it's possible to run the Home Menu outside of Prod. However, software with limited memory (such as the web browser) cannot be launched from the home menu if the home menu is outside of Prod.
  • Exception handler - Selects whether to enable or disable the application's handling of exceptions that arise in the non-debug environment.
If the application is not set to handle exceptions, the application quits when an exception occurs. - enable/disable
  • Break Stop - (enable/disable) - Selects whether to enable or disable stopping the application when a break is encountered in the non-debug environment. If the application is not made to stop, it quits on a break.
  • Debug Mode - (enable/disable) - Select enable or disable to enable and disable debugging functions.
Debugging is always disabled for retail products.
  • Dlp Force Child Import/Dlp Debug - (enable/disable) - normally the 3ds caches downloaded "Download Play (Dlp)" applications on the nand and only re-downloads, overwriting the cached copy if the version application being requested to downloaded is higher than what is currently present on the nand. Enabling this option forces the 3ds to download and overwrite the cached copy on the nand, regardless of the version of the application being downloaded. This is of course for testing purposes.
  • Fangate Failure Emulation - Unknown, related to the external Amiibo receiver?
  • Nup - Unknown
  • FS Latency Emulation - Filesystem Latency, in milliseconds (0ms-2550ms). Selection is in increments of 10. (ie 0ms->10ms->20ms...)


  • User Name - Console owner's "profile" nickname, unrelated to the Personal Mii
  • NG Name Flag - declares whether the name is "not good", i.e. contains a banned word. Normally automatically set by System Settings after a warning; effect unknown.
  • CountryId - Changes 3DS between installed countries. It can also be set to an undefined ID (255).
  • RegionId - Selects the sub-location (region, state, county), if supported by the selected country. Unidentified is displayed when RegionId is set to 255.
  • Hid Setting - (human interface device) Calibrates Touch-Pad and Analog stick.


  • FLICKER TOP - Bias voltage for top screen (the misattributed "contrast" or "scanline" control found as potentiometers in the battery compartment in previous color-display Nintendo portables)
  • FLICKER BOTTOM - Bias voltage for bottom screen
  • ABL ENABLE - "Power Save mode", adjusts backlight according to displayed image. Can also be enabled on 2DS, on which it is fully functional but the single backlight design may bring questionable results.
  • LUMINANCE LEVEL - Brightness. In older versions of Config, it could be set above 5, with no further increment and resulting in crashes of the Home Menu's quick settings.
  • BACKLIGHT DIMMING - Camera-controlled automatic backlight of New-3DS


  • RTC Setting - (real time clock) Sets system time, with equivalent results to System Settings.
  • Raw RTC Setting - Adjusts time directly on the hardware RTC. The resulting time is also displayed as a convenience. If the application being tested uses GetUserTimeOffset() to detect if the user has changed the clock, this can be used to change the clock without the application detecting it.


  • Eula Setting - Allows user to change "Agree Version" namely: "ff.ff" the two symbol sets are interchangeable with combination variations from aa to 99 (default is 00.00 where the Eula is not accepted yet).
  • Sound Mode - mono/stereo/surround
  • Olv Access Key - Unknown (Might refer to Olive/OLV Miiverse Library). Always appears to be 0 on retail units.
  • Test Setting - Verify operation and calibration of touchscreen and joystick.
  • Stereo Camera Cal for Check - Apparently writes incorrect calibration data for the camera.
  • Gyro / Accel Cal for Check - Apparently writes incorrect calibration data for the motion sensors.
  • Ctr Info Setting - Loads settings from a ctrsetting.txt present on the SD. Such a sample file is provided in the resources/configtool folder of the SDK.
The feature set of this option is only in most part the same as the interactive UI's, for instance ctrsetting.txt can also configure the DS Profile and Parental Controls.
  • Reset Settings - Resets all settings to default. The initial configuration will be run again, but installed applications or their data will not be deleted unlike in a System Format.

Downloadplay Client[edit]

Downloadplay Client Screenshots


Even though a Developer 3DS has a "Download Play" application visually identical to the retail 3DS application, the "Downloadplay Client" application can be installed as an alternative to the regular Download Play application. (Note: a Developer 3DS' and Retail 3DS' cannot receive download play 'children' from each-other.) This Developer application is a stripped down version of 'Download Play' which has the following options and limitations:

  • It can only download 3ds download play titles
  • Scraps the GUI found in the normal Download Play application (see screenshot)
  • Can select from a maximum of 16 Download play 'servers'

This application is clearly used for easy testing of download play 'child' apps, without the hassle of constantly re-navigating the normal Download Play interface



Network Settings[edit]

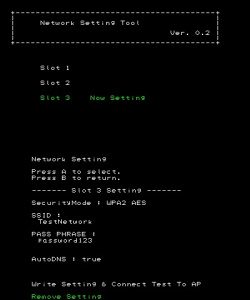

Network Settings Screenshots

This Developer application allows the users to directly modify the following from any of the three possible network setting 'slots'

  • Security Mode :(the wireless encryption the network is using) OPEN/WEP 40bit/WEP 104bit/128bit/WPA TKIP/WPA2 TKIP/WPA AES/WPA2 AES
  • SSID :(self-explanitory) maximum 32 characters
  • KEY :(the key for the encrytion is here in plain text) the maximum length depends on encryption type
  • AutoDNS :(whether the 3DS obtains the DNS automatically or not) |True-3DS obtains the DNS automatically|False-3DS uses the DNS server address provided by the user(it is possible to edit this here)|

At the bottom of the setting options there are two choices:

  • Write Setting & Connect Test To AP - Applies the settings above and performs a connection test(note any settings made in system settings for this connection, which are not present in the above settings will be nullified, for example any proxy server settings)
  • Remove Setting - removes all settings for this 'slot'



SaveDataFiler[edit]

SaveDataFiler Screenshots

This 3DS Developer application allows save files and extdata to be exported and imported from an SD Card. The window has three tabs:

  • User - This is where saves for 3DS-mode installed and cartridge applications can be exported to the SD Card. After the initial release, button combinations for deleting the entire save archive or resetting the secure value system for the selected title were added. The selected save archive can also be browsed by pressing A.
  • ExtData - This is where application extdata can be deleted or exported to the SD Card for later use
  • SD - This is where backups created through the first two tebs can be re-imported (with the options of an automatic target selection, or explicitly choosing the SD or the Game Card). Exported data can also be deleted here.

Applications are listed only by Unique Id. TWL-mode software is ignored by this application, while GBA-mode apps will always be shown as not ever having saved ("broken" and highlighted in red).

User save data is exported to sdmc:/filer/UserSaveData/YYYYMMDD(Hour)(Minute)(Second)

It creates a folder in that path and 3 files. The 2 files exported to the above path are <uniqueID>.dat and <uniqueID>_.dat while a folder named /<uniqueID>/ in that path contains <ExHeader Name>.dat

CTR MenuSelector[edit]

Menu Selector Screenshot

This application when loaded can change the current 'Active Menu'(being used at the moment) by editing the menu TID configuration field, allowing the user to choose between the Home Menu or the Test Menu, as the menu loaded by the NS module. With the release of SDK 1.1.0, this application was superseded by the introduction of the "Menu" choice in the Config Menu and consequently removed as a standard application.

CecBoxTool[edit]

Streetpass backup and restore tool, can also reset the MAC filter.

CecLotCheckTool[edit]

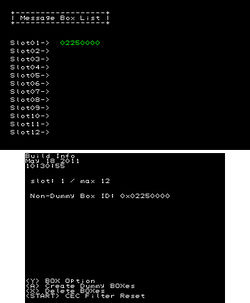

CecLotcheckTool Screenshot

This application is used to manage CECs (Chance Encounter Communications, AKA StreetPass hits) for any of the twelve possible applications used on the 3DS, if there are any. The application has twelve possible slots which can be filled by BOXes . The BOXes are individual applications which are permitted by the user to use CECs, such as StreetPass Mii Plaza or Nintendo 3DS Sound. And as such, the boxes in this application correspond to the applications in 'StreetPass Management', in 'System Settings' (StreetPass Management is accessible from retail 3DSs). The functions of this application:





  • <Y> BOX Options - this opens up a sub menu with the following options(when hovering over Nintendo 3DS Sounds BOX - the only one I can test the app with):
  • Box Info - Gives the Out-Box parameters Boxinf.jpg



  • Message Info (OUT-BOX) - Gives the Message Parameters For the current BOX Mesinf.jpg



  • Dummy Message Settings - Not quite sure what the options do here Dummesinf.jpg



  • <A> Create Dummy BOXes - Creates dummy BOXes to fill any unused slots. (does not overwrite any present slots)
  • <X> Delete BOXes - Deletes all of the BOXes from the slots.
  • <START> CEC Filter Reset - Resets 8-hour per source rate limit. Requires other party to also do so (thus "abuse" of Nintendo Zones can't be accomplished through this)

BossLotCheckTool[edit]

BossLotCheckTool Screenshot

This application is used to manage BOSS (SpotPass) tasks/data for 3DS titles which utilise BOSS communications. 'Pokedex' is an application which utilizes BOSS comunications. This application also displays the 3DS's friend code, although this code is not to be confused with the 3DS's Friend Card code found in 'Friends List'. The user can browse by unique ID the 3DS titles(excluding system titles) registered to use BOSS. For each title you can view details about the downloaded 'NsData' which accompanies BOSS downloads, view the BOSS task lists (implies applications can perform more than one BOSS task). You can also view various details about each BOSS task, including:

TaskStatus : DONE?
TaskExecCount : How many times the BOSS task has been executed
TaskExecInterval : Period of time (in seconds) in the task is to be executed, in intervals
TaskPriority : Is a number value
URL : The URL to the BOSS content
AP Info : NONE?
TaskResultCode : Success or not
HTTP_StatusCode : Self explanatory
DataSize : Size of Content (in bytes)
Last_Modified : Last time the BOSS content (on server) was modified
StartTime : when the BOSS task was registered
OptOut : Whether the user can/has opted out of BOSS communication for this task

It also possible to manually execute the BOSS task from here

Stereo Camera Calibrator[edit]

Stereo Camera Calibrator Screenshot

The Stereo Camera Calibrator (SCC), in a nutshell, allows the user to adjust the configuration of the outer cameras in relation to each other. It can be configured automatically by positioning the 3DS a set distance away from a special chart. It can also be configured manually, by setting the rotation of each camera image and the size of the right eye camera. The 3D effect can be perceived by superimposing the right eye camera image translucently with the left eye camera image or by viewing the 3D image directly by use of the parallax barrier in the 3DS Screen.


FragDisk[edit]

Creates many small files on the SD card and deletes one out of two to fragment the free space.

Model Viewer[edit]

3DS Model Viewer Screenshot

As the name suggests this application allows the user to view models. It is supposed to be used with a CTR-Debugger, assumingly so models can be entered in the memory of the program. But the program can be used on Test Units, but the model is restricted to three coloured lines depicting the 3 dimensions (x,y,z). The model can be viewed from any angle or scale, the perspective is controlled by the circle pad and directional buttons. And of course the application utilises the 3D effect


Friend Add Tool[edit]

Delete all friends, fill the Friend List with dummy FCs, or with ones loaded from friend_code.txt on the root of the SD card.

This file must contain 1-100 friend codes, one per line. Digits may be grouped at the user's discretion with spaces, dashes, or nothing.

Friend Testing Partner[edit]

Friend Testing Partner Screenshot

The Friend Testing Partner application is used to test/monitor the 3DS's Friend List function. It allows the user to test various functions of the 3DS's out-going Friend Card, by giving the following options:

  • Master Control - (RUN/STOP) (STOP is the default setting) when ‘STOP’ is selected the 3DS Friend Card uses the user’s settings/data. When ‘RUN’ is selected the 3DS Friend Card uses the dummy settings/data chosen to test from the settings bellow.
  • Login/Logout - (ON/OFF) (ON is the default setting) What effect this has on the Friend Card is not known
  • Playing Title - (ON/OFF) (ON is the default setting) When ‘ON’ is selected the currently used title is ignored and a dummy applications are cycled through as the ‘Playing Title’ approximately every ten seconds in its place. The dummy applications used are the applications found in Firmware version 1.0.0-0 of a retail 3DS including the ‘Nintendo Zone viewer’ app. When ‘OFF’ is selected the currently used title (which is the Friend Testing Partner app) is used as the ‘Playing Title’
  • Mode Description - (ON/OFF) (ON is the default setting) When ‘ON’ is selected the Software in Use(Playing Title) is accompanied by the Date and Time found on that user’s 3DS. The Mode Description is refreshed every ten or so seconds. When ‘OFF’ is selected the date and time on the user’s 3DS is not displayed.
  • Message - (ON/OFF) (ON is the default setting) When ‘ON’ is selected the message made by the user is replaced(not overwritten as it reverts back to the user’s choice when this is ‘OFF’) by the current date and time in the format “YYYYMMDD HHMMSS”, this is refreshed every ten or so seconds.
  • Mii - (ON/OFF) (ON is the default setting) When 'ON' the currently used Mii is replaced with one of 4 dummy Miis and cycles them through every ten seconds with a new dummy mii. This effect can only be seen from another 3DS not the host
  • Favorite Title (ON/OFF) (ON is the default setting) When 'ON' is selected, the user’s favorite title is replaced with a dummy, which is replaced every 10 or so seconds.

Also this application allows the user to monitor the whether the 3DS is online or not and whether the 3DS’s Friend Presence is online or offline. Every time a dummy setting is refreshed it is displayed on the top screen with a time stamp.


Game Coin Setter[edit]

Game Coin Setter Screenshot

This application is used to set the Play Coin count on the 3DS. Obviously this was created so a developer can test parts of their game in which the player can exchange earned play coins for in-game content or similar. It has a very simple interface showing the current play coin count and the adjustable option, the target coin count. These are the controls with explanation of each:

  • LEFT/RIGHT - using the D-pad only to adjust the 'Target Count' to a number between 0-300.
  • A - Sets the 'Current Count' (amount of play coins the system has) to the user selected 'Target Count' (the user specified amount of play coins)
  • L+R+X - "Preclude today's Increment" Sets byte 6 of the play coin database so that no coins will be earned for the current day anymore.


IR Communication Checker[edit]

Counts data seen by the infrared port. It doesn't have to be valid, as it happily measures a camera flash...


Dummy Nintendo eShop[edit]

This application exists to debug API(JumPToEshop( ) ) on the 3DS. This was created so a developer can test parts of their game in which the player can preview or purchase titles within a game. It is mainly used in conjunction with Downloadable content. It has a very simple interface showing the reason for its existence and controls for exiting to the home menu or finalizing the Dummy Shop. The Dummy Nintendo eShop also shares the same Title ID and Unique ID as the Retail Nintendo E-Shop.

SDK 7 DummyEshop Screenshot



FangateFwUpdater[edit]

This is a tool for updating or destroying NFC reader/writer firmware. This tool cannot be used with SNAKE development devices or SNAKE development tools. It operates only with CTR development devices and CTR development tools.

UdsLocalIdChecker[edit]

A scanner for local, console-to-console networks.

TWL Development Tools[edit]

These are DSi/DS mode development tools repackaged into a CIA, for installing to the TWL NAND.

NINTENDO DS - WMtest[edit]

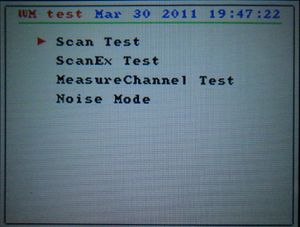

WMtest Screenshot

left‎

This application is a TWL(DSi) application compiled for use on the 3DS. It is an wireless test tool with its uses explained below:

  • Scan Test - Scans Wireless channels 1-13(can be focused on one specific channel) for broadcasting stations. It can detect two types of broadcasting stations:
Wifi Access Points - Giving the Mac Address, Broadcasting Channel, 'c', and the SSID
DS Stations such as DS Download stations and Pokemon distributors - Giving the Mac Address, Brodcasting Channel, TGID and GGID
  • ScanEx Test - and has two Scan Types. Passive which lets you individually scan channels 1-13 (only one at at time) and the DS distribution channels (1,7,13 all at once). And Active which scans all 13 channels at once. when it finds a channel it prints on the bottom screen next to 'Found' 'bssDescCount='
  • MeasureChannel Test - not quite sure what this does but it for a given channel it gives a ratio(in percentage form), which it finds in its allocated test time ranging from 10ms to 1000ms. And for every interval of time which is specified, it tests and gives a ratio.
  • Noise Mode - Seeks wireless channels in which to make wireless noise (This is not made very clear on the app). You can specify the:

Channel where the scanner will seek to make noise

Noise Rate, ranging from 0% to 100%

Frequency, ranging from 10ms to 50ms

Seek Mode, ranging from 1000ms to 1500ms

When the settings are chosen the top screen has two counters which display 'Noise ON count' and 'Noise OFF count' the counters are affected by the noise rate. Starting at 0% the 'Noise ON count' does not change but as the Noise rate gets closer to 100% the count moves and gets faster as Noise rate reaches 100%. For 'Noise OFF count' it is the exact opposite to the ' Noise ON count' in regards to counting.


NW4C[edit]

NintendoWare for CTR is comprised of tools that deal with creating effects, fonts, models, layouts, sound, and text. There are CTR versions of some of the viewers.

H3D Model Viewer[edit]

H3D Viewer Screenshot

Used for viewing Binary CTR Models (.bcmdl). Models need to be loaded into memory via CTR-PARTNER. There is also a PC equivalent program with the same layout.






Layout Viewer[edit]

Layout Viewer bottom screen

Used for viewing Binary CTR Layouts (.bclyt). It is used with CTR-PARTNER to load layouts into RAM.






Effect Viewer[edit]

EffectViewer4C Screenshot











System Updaters[edit]

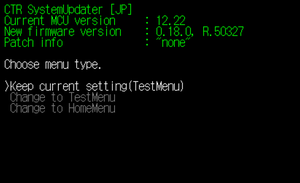

CSU Screenshot

There are two kinds of system updaters for dev (panda) units, CTR System Updater (CSU) and SNAKE System Updater. As the names imply, the former is for original 3DS and the latter is for New 3DS. They are used to update the panda unit's 'firmware'/SDK Version. The romfs of the CSU contains the contents that will be installed to NAND. They contain all system titles as well as Devmenu and Config.
